When Patrick "Patch" found his 1959 Chevrolet Apache 3100 in California, the plan was relatively straightforward.

He wanted an old pickup that looked largely original from the outside but had modern running gear underneath.

The truck had already lived a working life in Fort Bragg, California, where it was still being used as a practical vehicle. It was a great starting point for the kind of understated build Patch had in mind.

But the more he thought about it, the more the idea changed.

If the mechanicals were going to be completely modern, why stop there?

Patch wanted the outside of the truck to deserve the same attention. That meant taking the time to get the details right rather than simply fitting new mechanicals underneath an old body.

What followed was a much bigger project than originally planned.

Patch had a strong idea of what he wanted from the finished truck, but he also gave the Real Rides team room to contribute their own ideas.

That became an important part of the build.

Instead of treating the truck as a series of separate jobs, the project developed through constant discussion between Patch and the team. That allowed ideas to evolve as the work progressed and gave the workshop the freedom to find better solutions to some of the challenges along the way.

The result is a truck where the mechanical engineering, fabrication, bodywork and interior all feel like parts of the same project.

The biggest challenge wasn't finding an engine with enough power.

Patch wanted the Apache to drive like a modern performance vehicle, and that meant the chassis had to be capable of supporting everything that came with it.

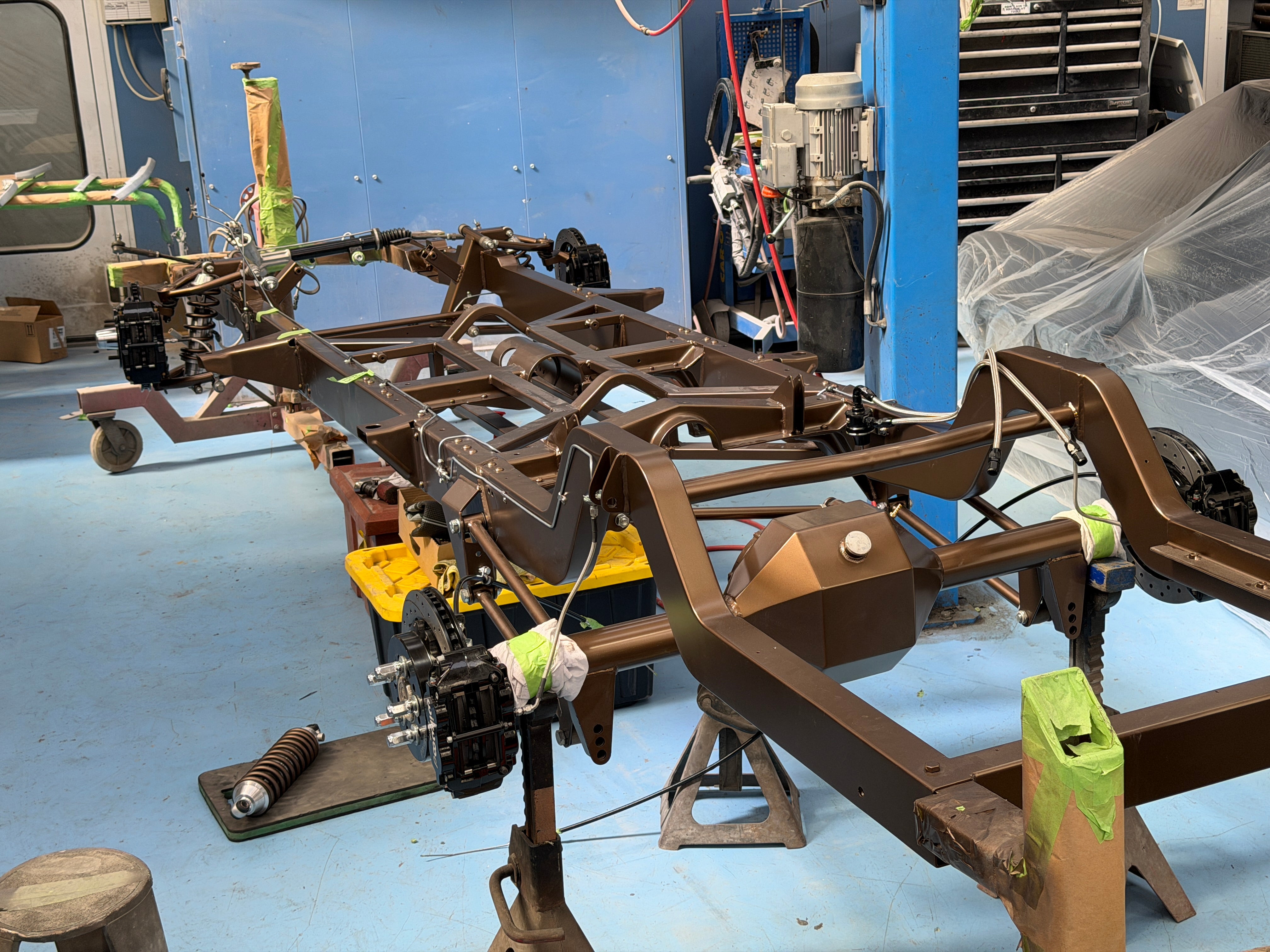

The original frame was boxed and reinforced with custom cross-members before the suspension was completely reworked.

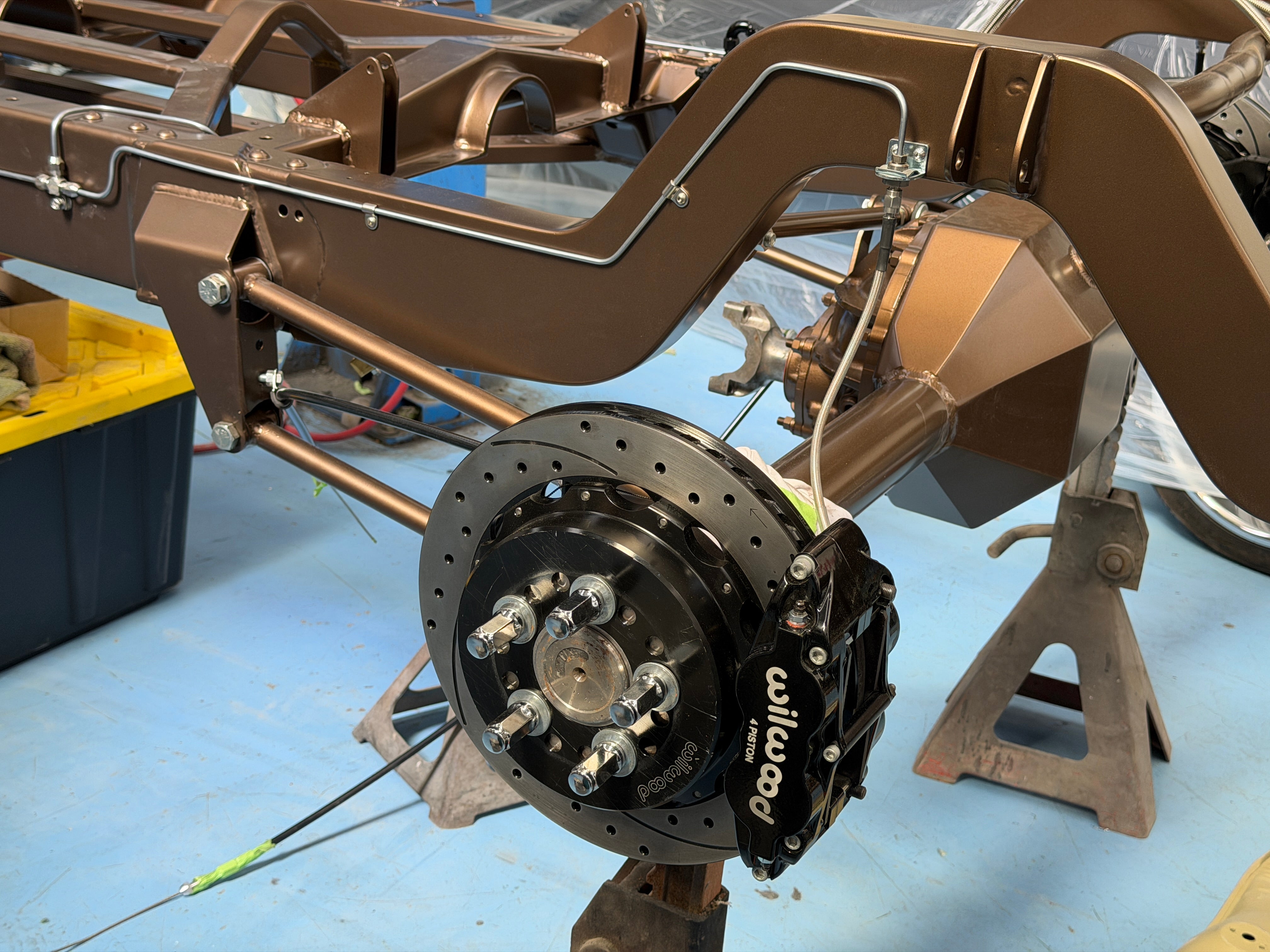

A Heidts independent front suspension brought adjustable coilovers, double A-arms and rack-and-pinion steering to the front of the truck. The chassis was modified to achieve the desired ride height, while the rear received a custom four-link setup and Panhard bar.

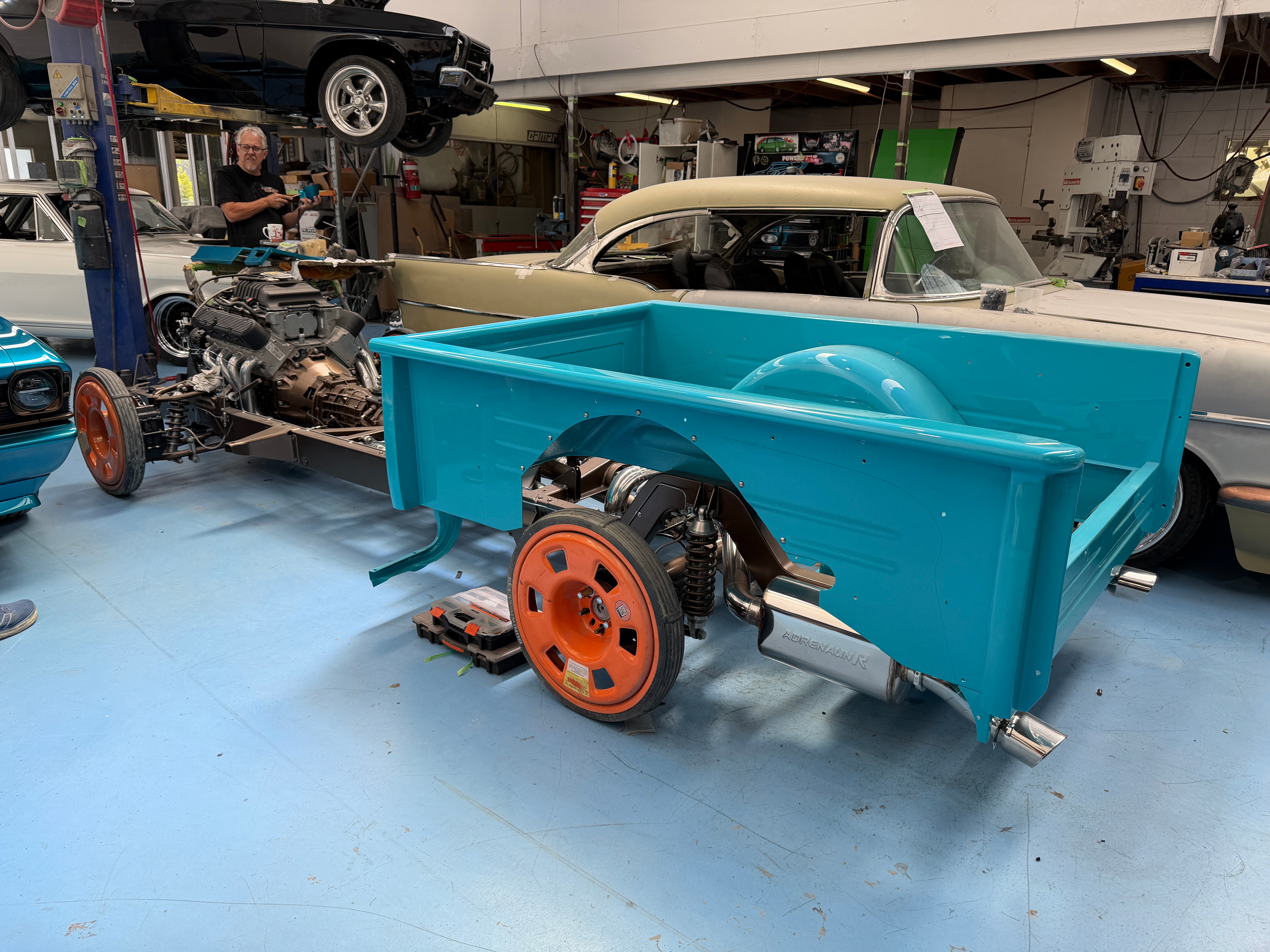

The rear chassis was also reworked to accommodate a Moser nine-inch differential and position the large rear wheels exactly where they needed to sit beneath the guards.

This wasn't simply about making the Apache sit low.

It was about making sure it could drive properly at that height.

With the chassis sorted, there was a suitably serious powerplant to deal with.

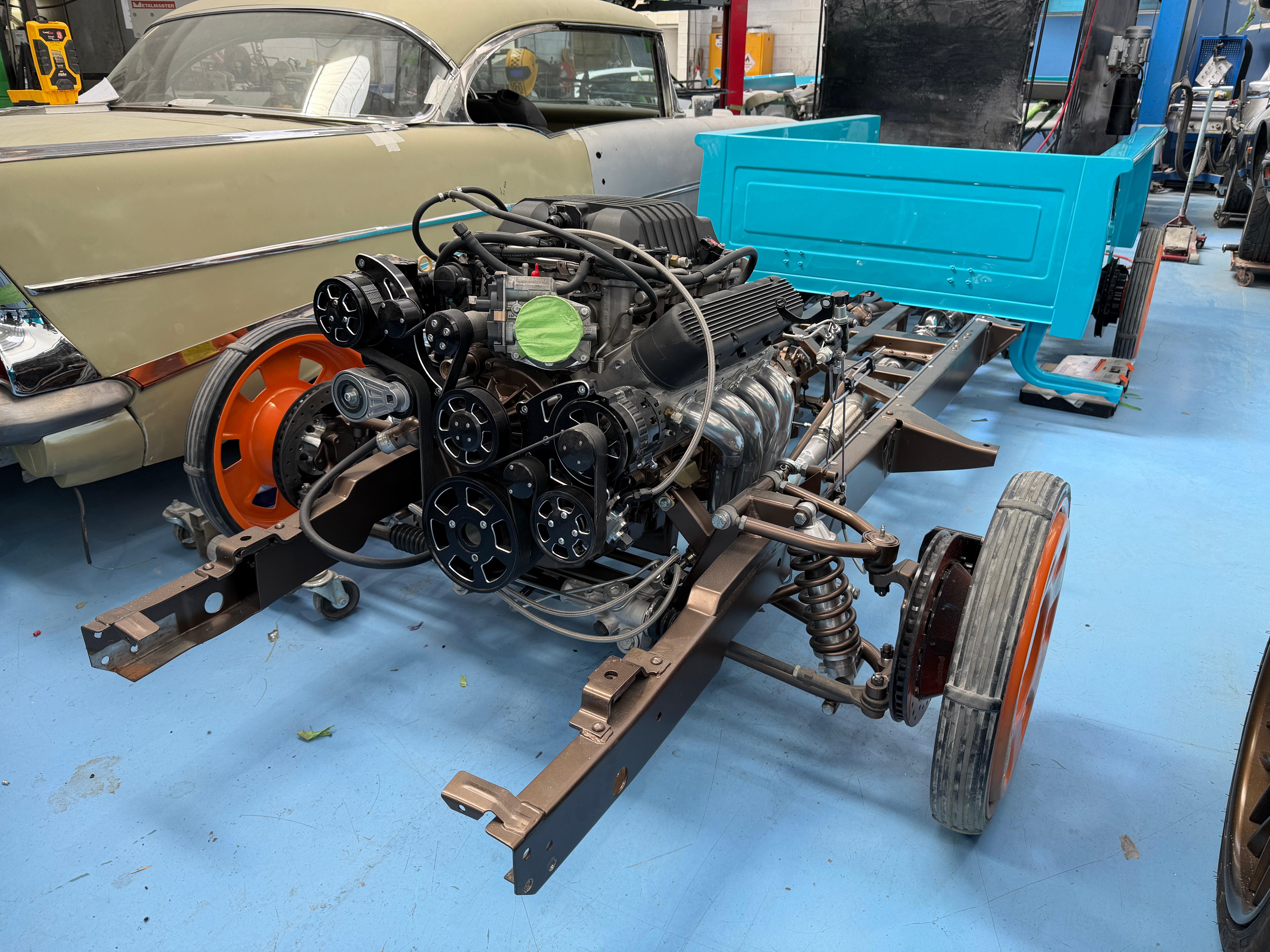

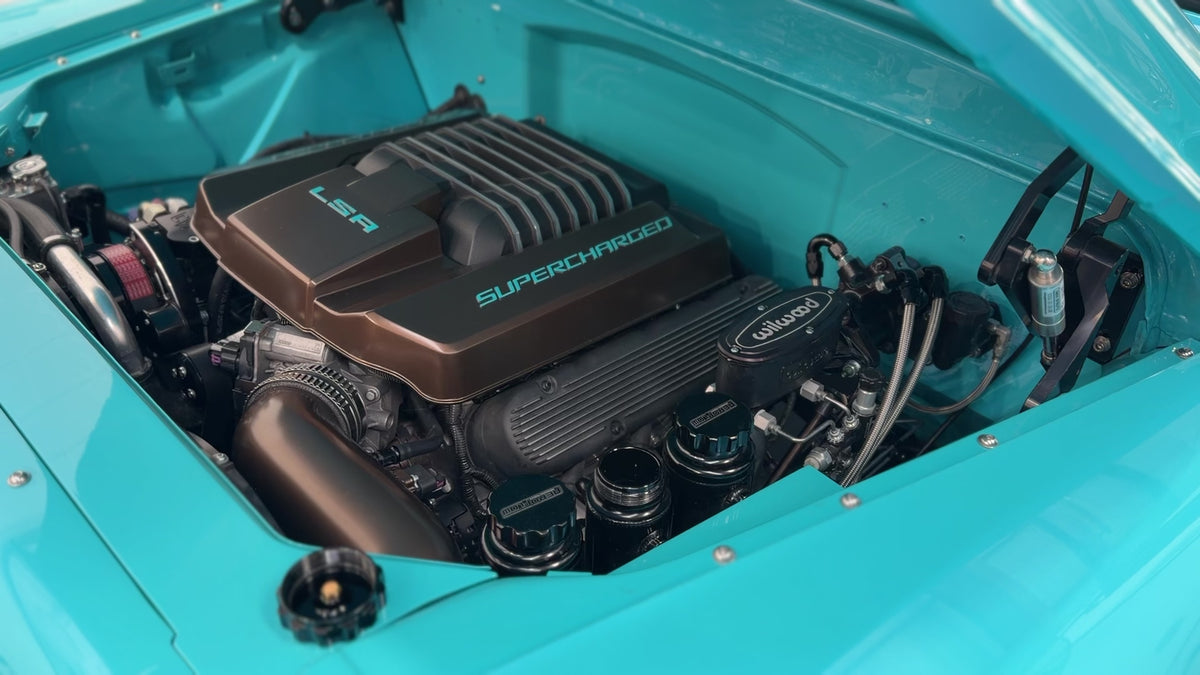

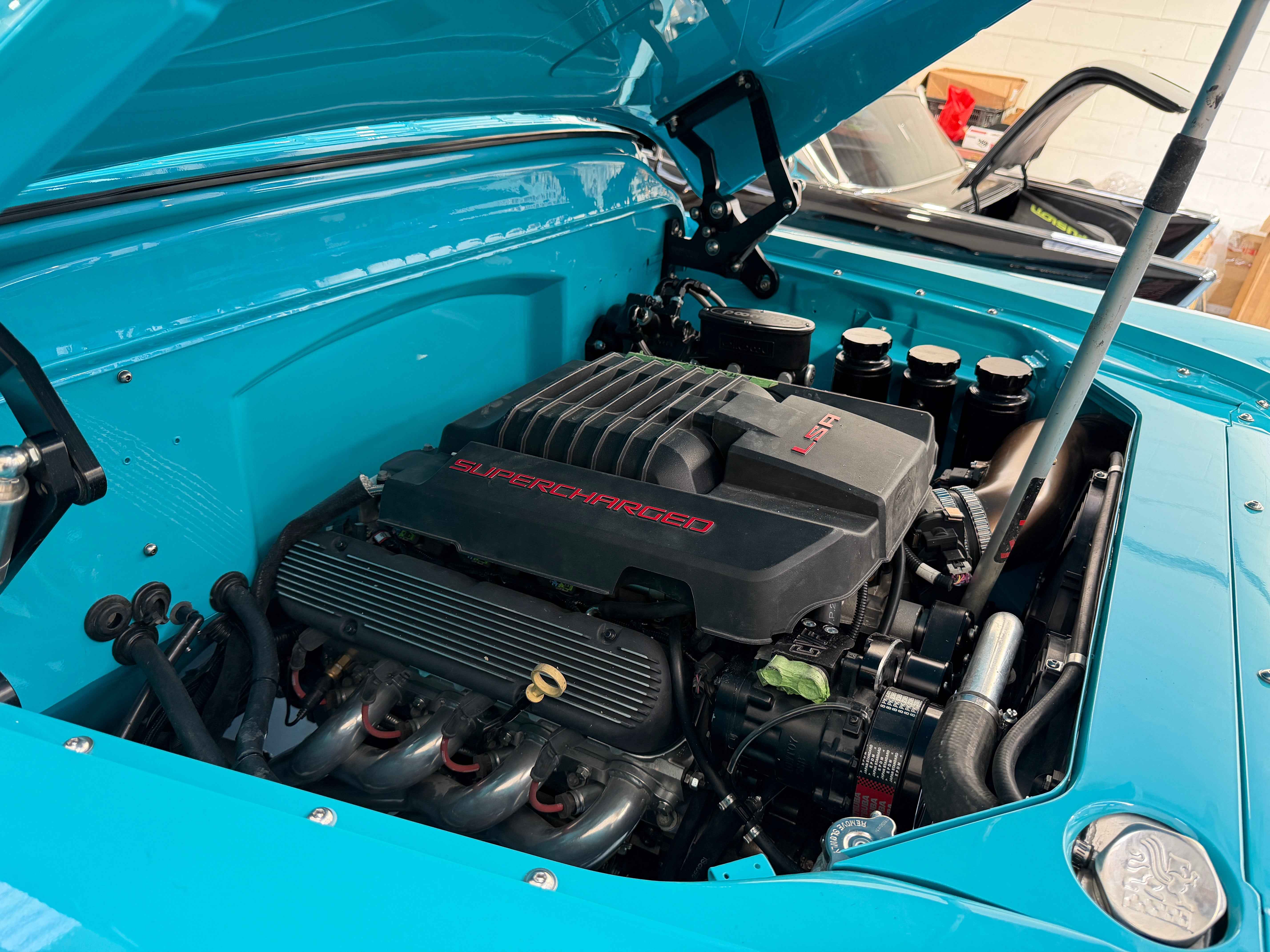

The truck runs a 6.2-litre LSA V8, originally intended for a VF HSV GTS. Prescott Engines developed the engine package with an upgraded camshaft, valve springs and supercharger pulley arrangement.

The result is 671hp at the wheels.

Getting that amount of power into a 1959 pickup brings its own challenges, particularly when the aim is to create something that can actually be driven rather than simply displayed.

The cooling system was therefore completely engineered around the new powertrain, with a large aluminium radiator and custom intercooler helping keep temperatures under control.

Power is sent through a TR6060 six-speed manual to the Moser nine-inch rear end.

Once the suspension and chassis were being redesigned, the wheels became part of the engineering equation too.

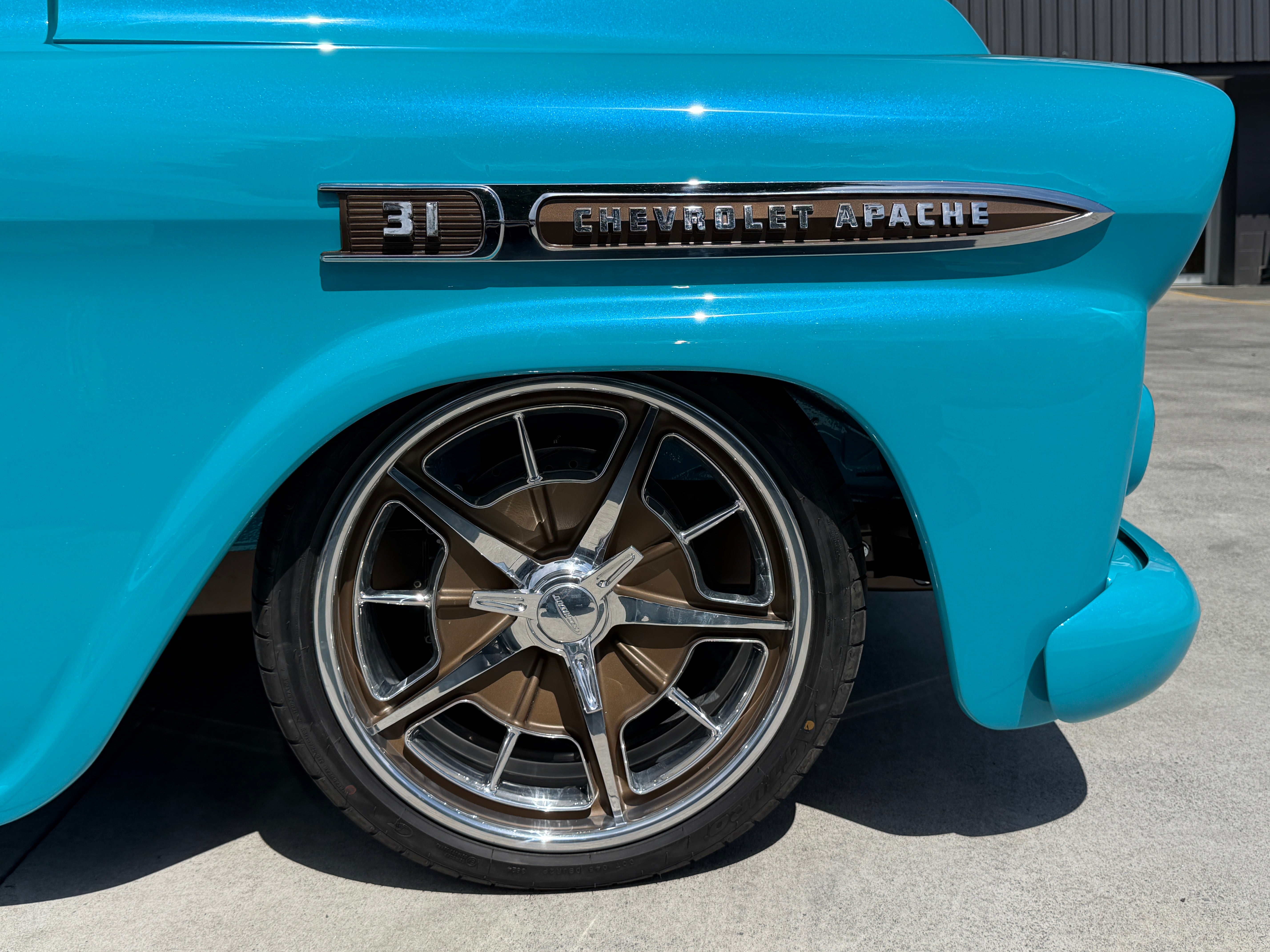

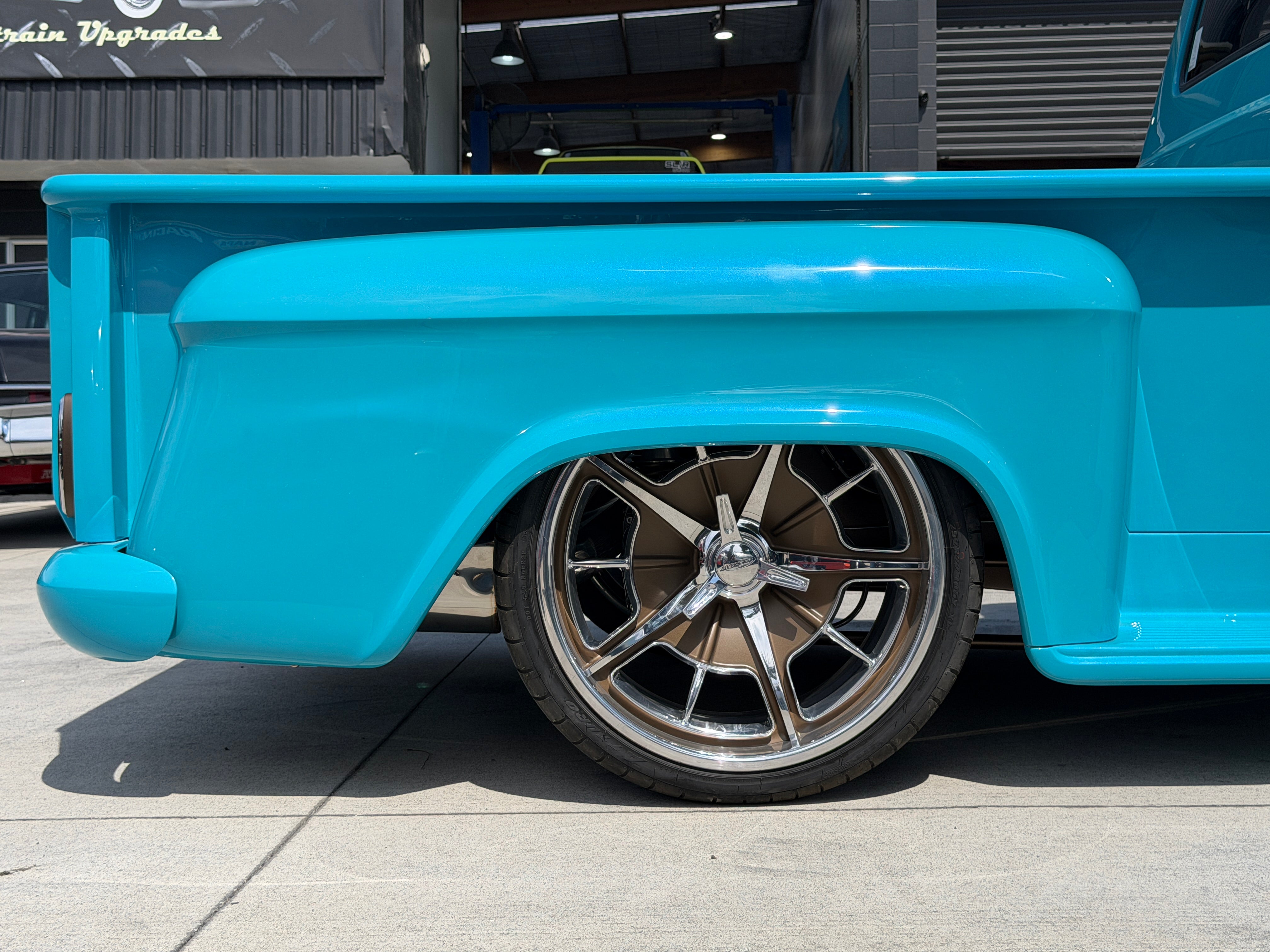

The rear axle dimensions were specified around the huge 22x12-inch wheels, while custom front offsets were used to achieve the right fitment.

That meant the body and chassis modifications weren't being done independently of the wheels. Everything had to work together.

The rear tubs were raised, the tray floor was lifted 90mm and the chassis was modified to create the required clearance while maintaining the stance Patch wanted.

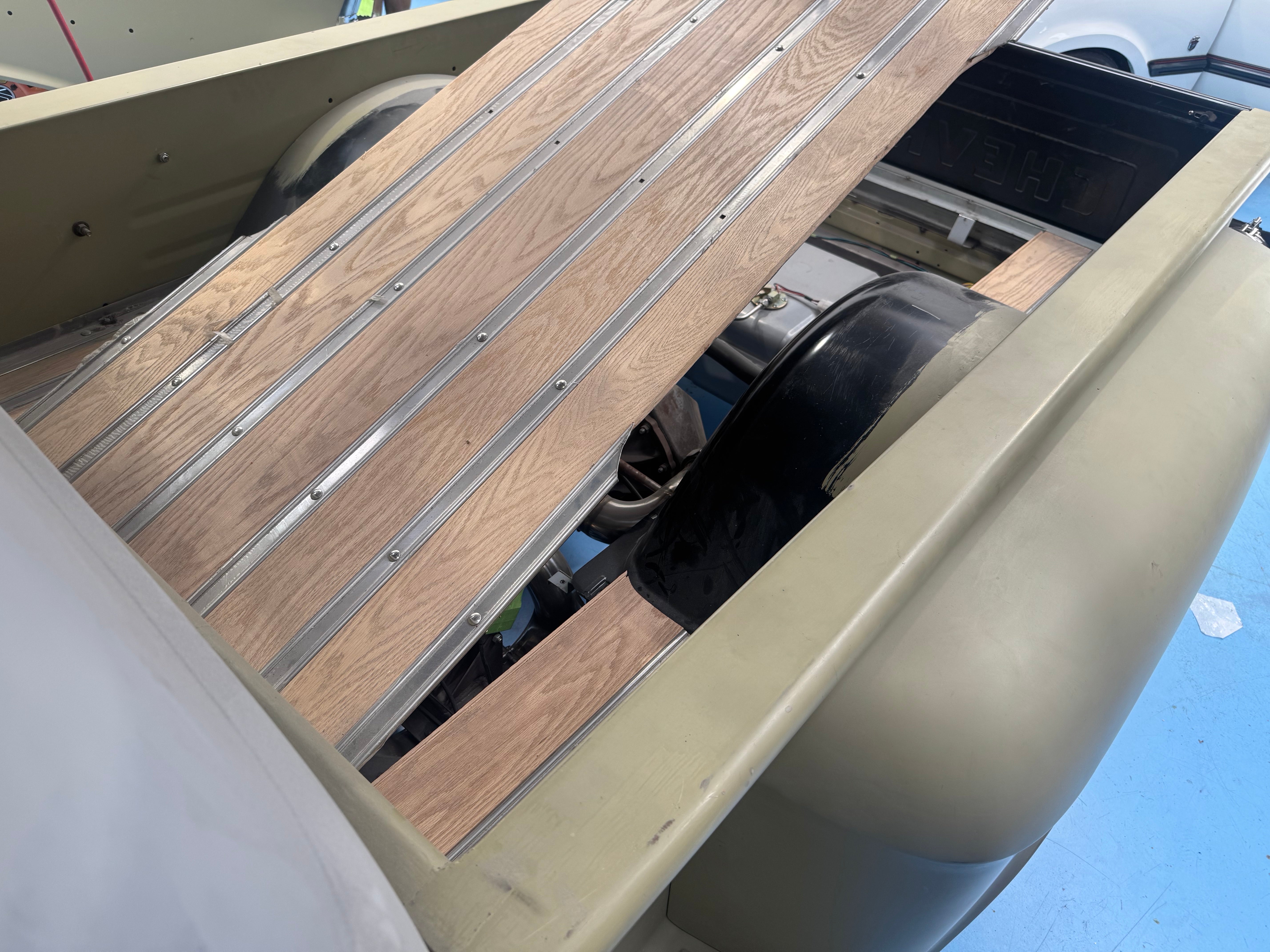

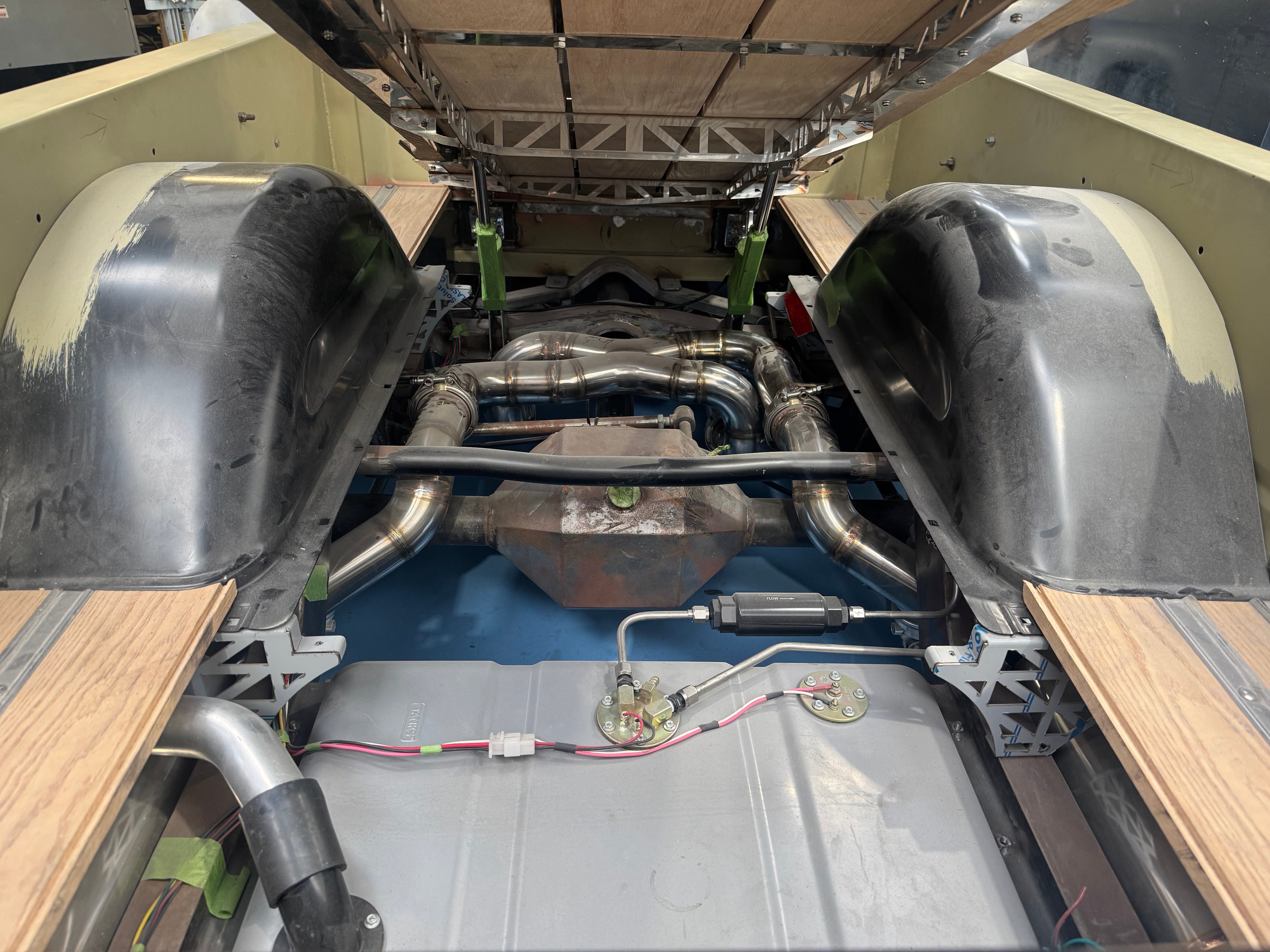

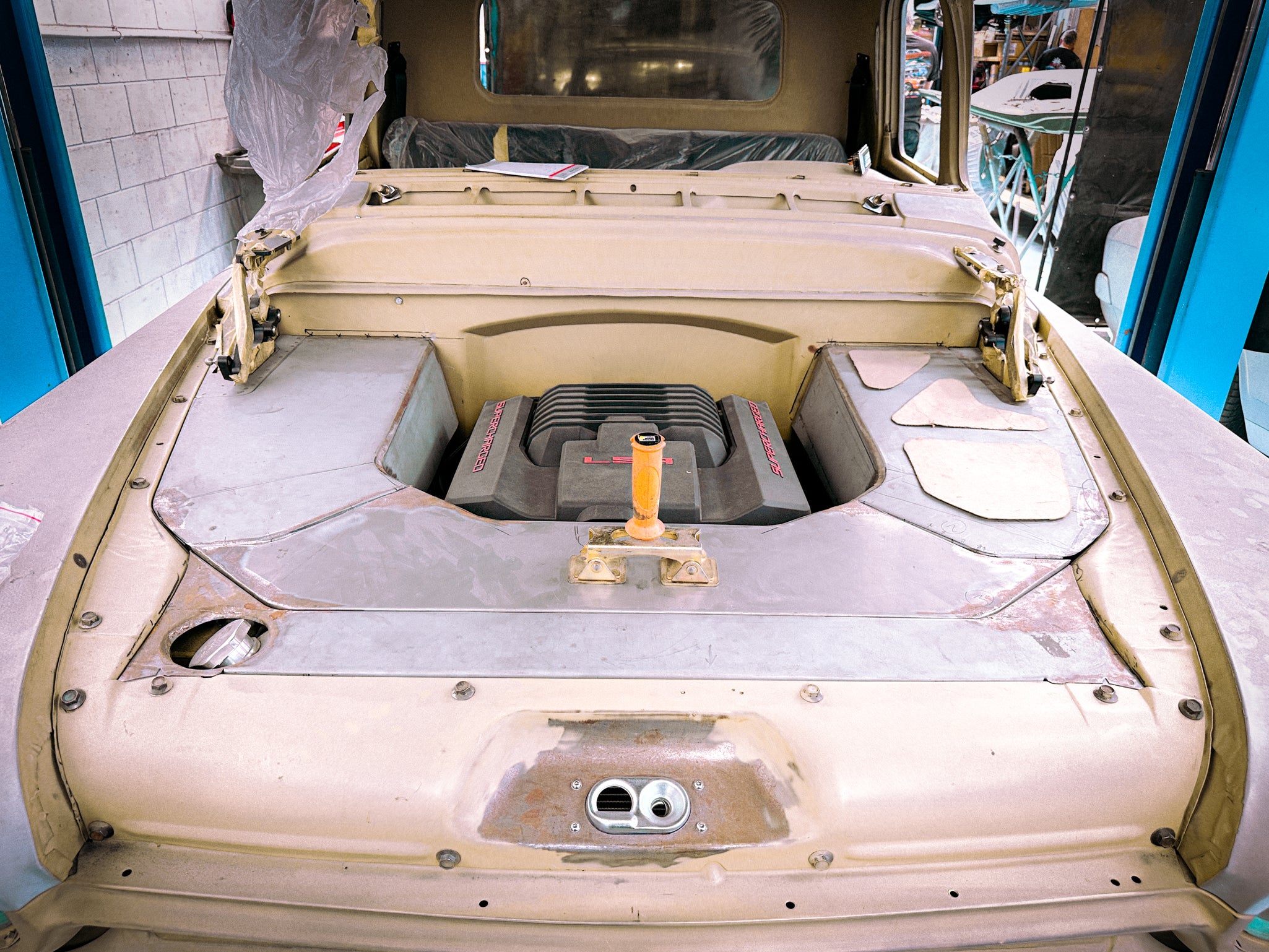

Even the centre section of the tray was turned into a feature of the engineering, lifting to reveal the mechanical work underneath.

It is the sort of detail that might take only seconds to notice — but it is the result of hours of work getting the underlying structure right.

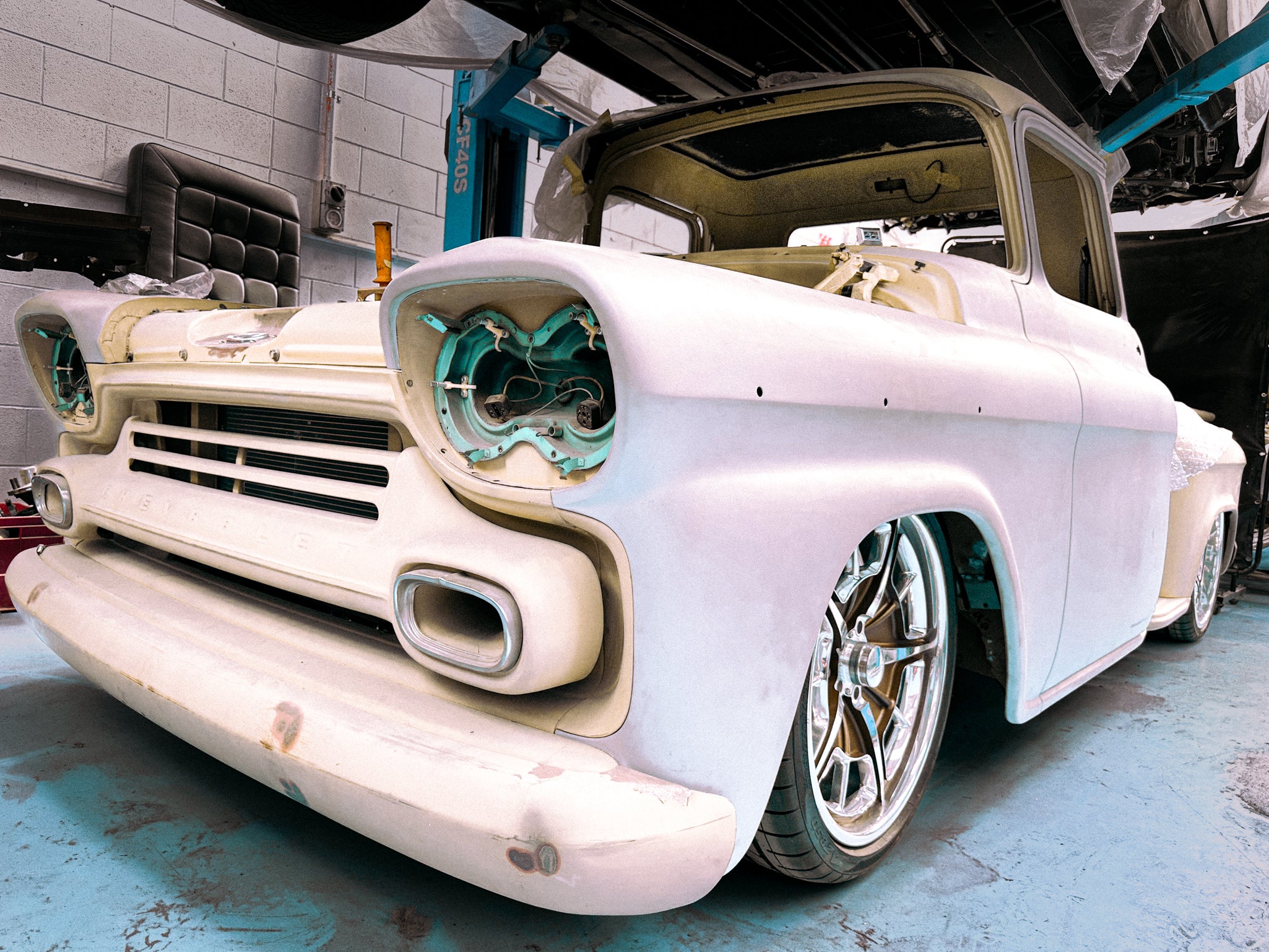

Once the mechanical package was taking shape, the body became its own project.

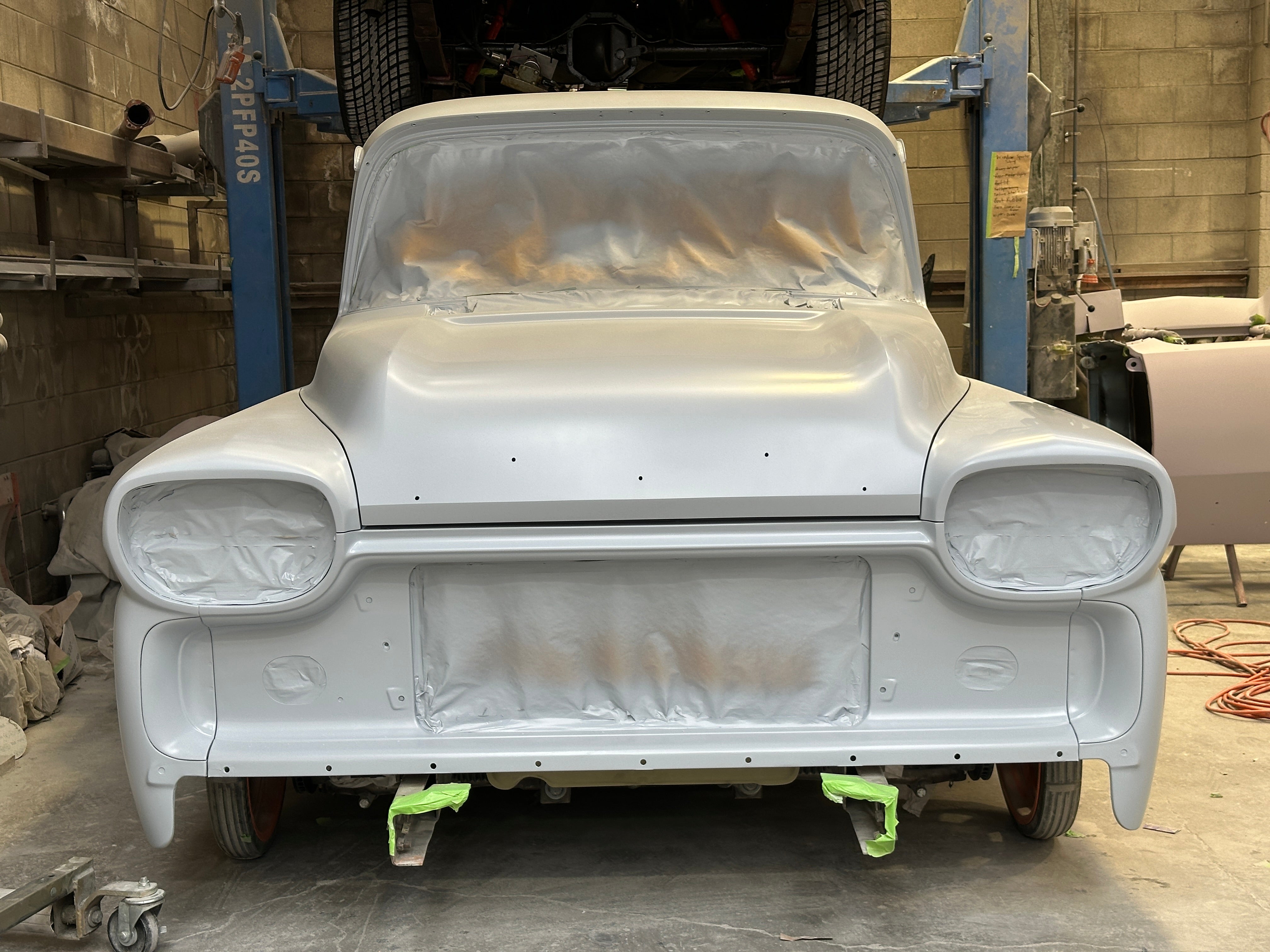

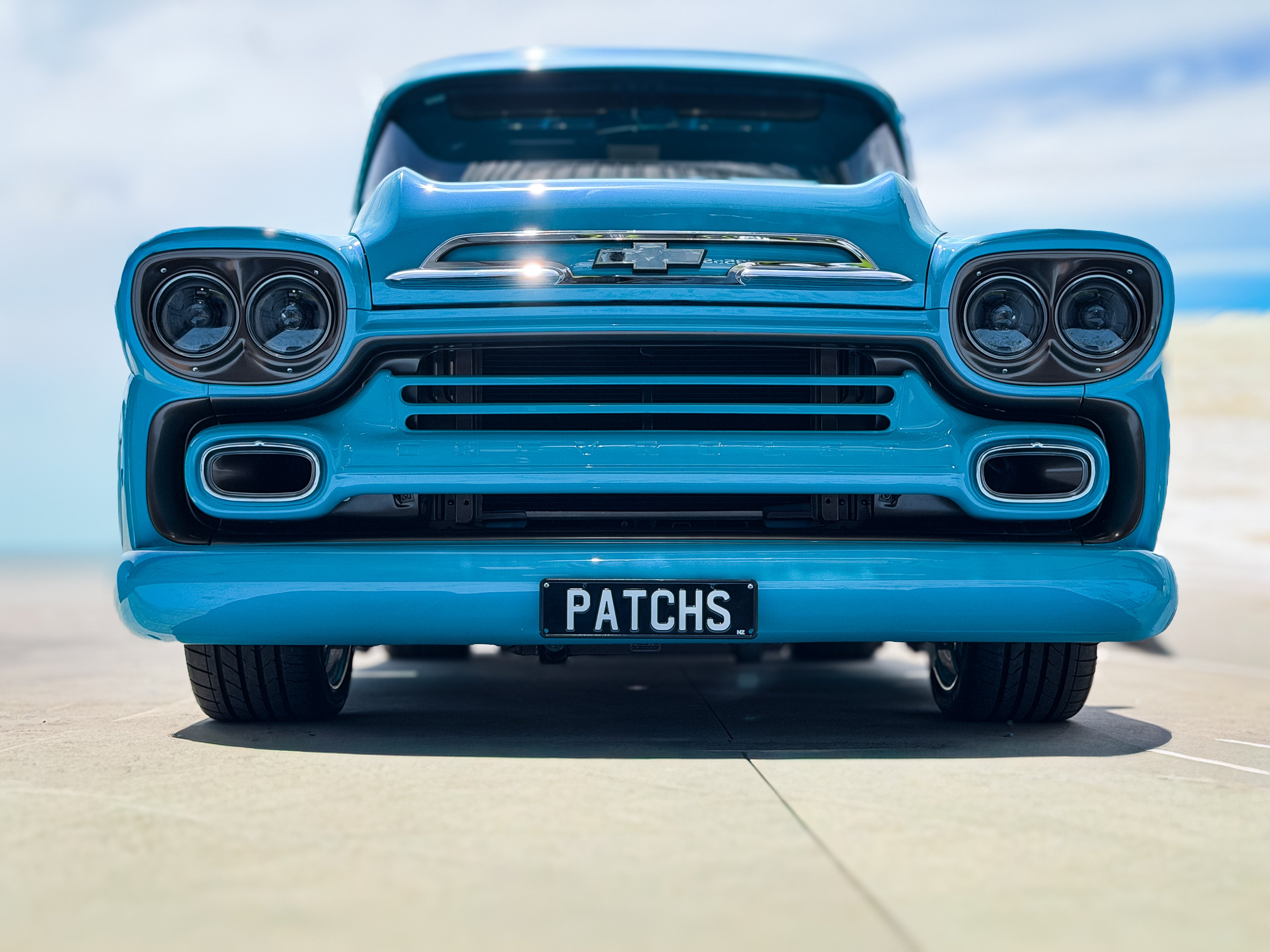

The original bumpers were modified and repositioned, body lines refined and numerous sections of the truck reworked to create a cleaner, more cohesive appearance.

The sun visor was integrated into the roof, the rear bodywork was redesigned and the tray received extensive fabrication, including a new floor and custom centre section.

The level of finish continued into areas that aren't immediately visible.

Door openings and other internal body surfaces were refined rather than left as they would have appeared on a working pickup from 1959.

That approach is important on a build like this.

When the goal is a genuinely high-end custom vehicle, finishing the parts that are normally hidden is what makes the whole vehicle feel complete.

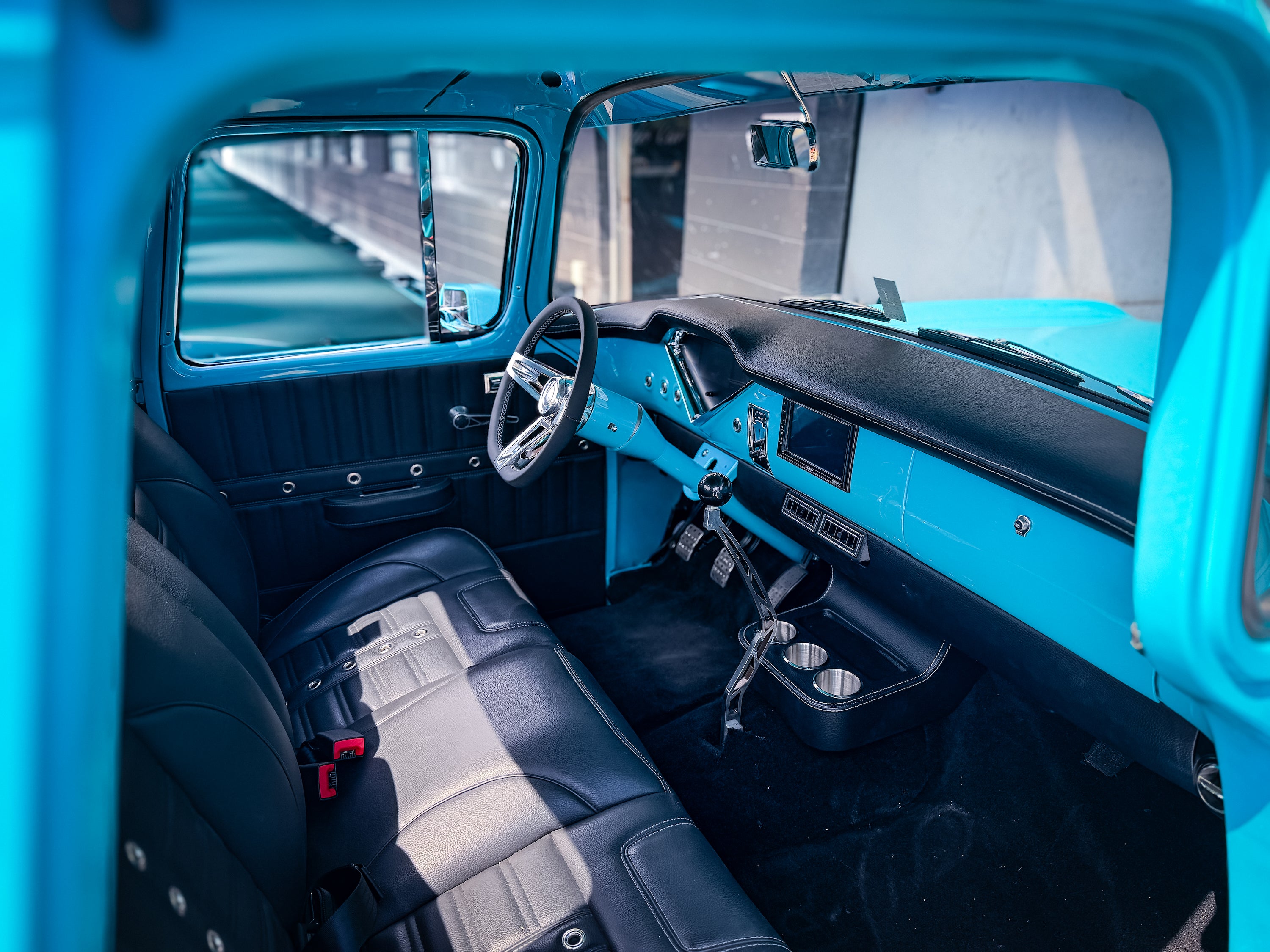

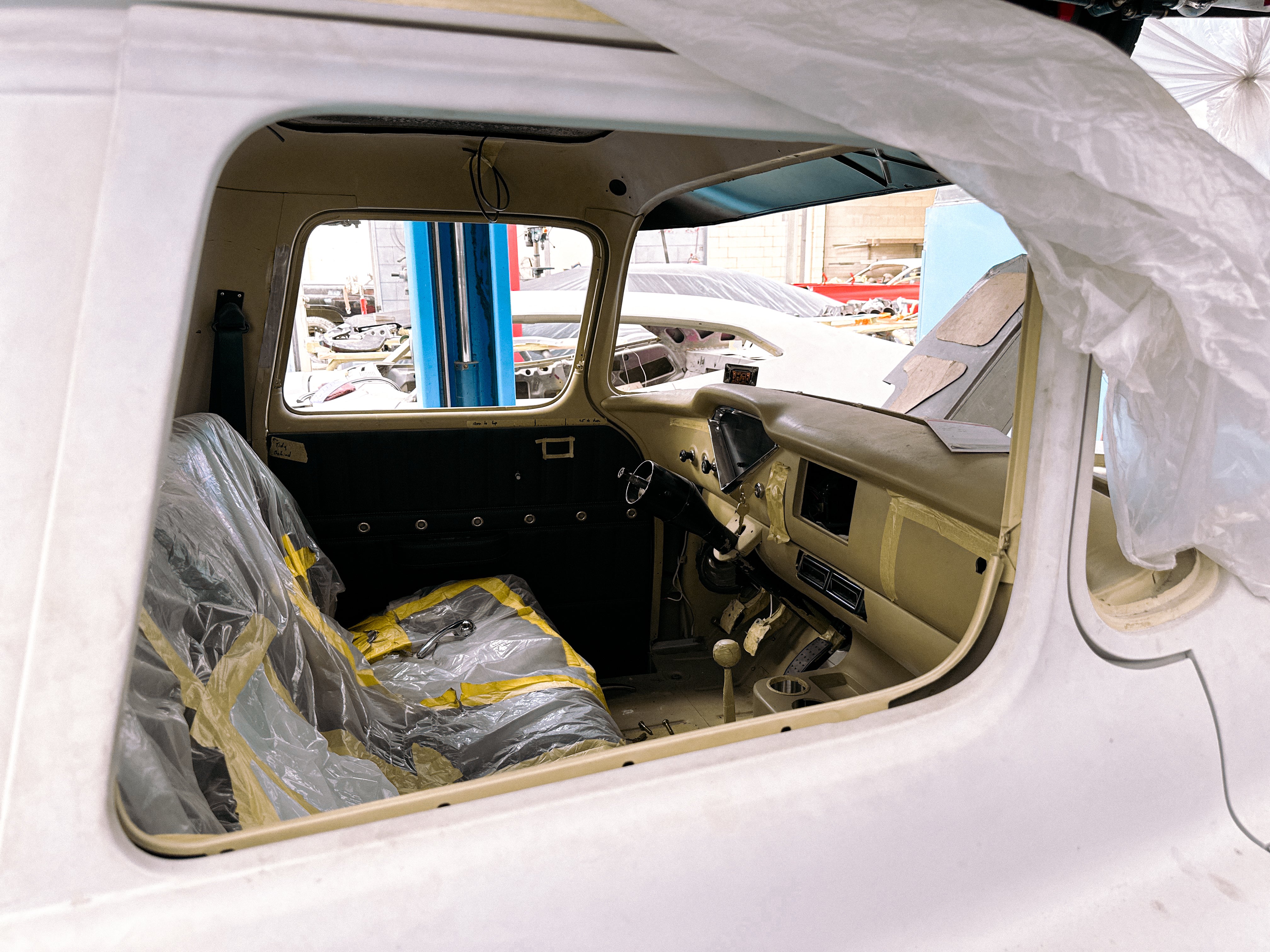

Inside, very little of the original working-truck environment remained.

The factory seats were retrimmed in leather, while the dashboard was redesigned to accommodate modern equipment without losing the character of the original metal dash.

A custom lower dash houses the air-conditioning system, with Dakota Digital instrumentation providing the information Patch needs while driving.

The steering column and pedals were also upgraded, along with the braking system, which uses Wilwood components and hydroboost assistance.

A custom centre console, Real Rides shifter and modern audio system complete an interior designed for much more than occasional trips to a car show.

The result is an old truck that can be enjoyed with the comfort and control expected from a modern performance vehicle.

With so much fabrication underneath and around the truck, the paint had to do more than simply make it look good.

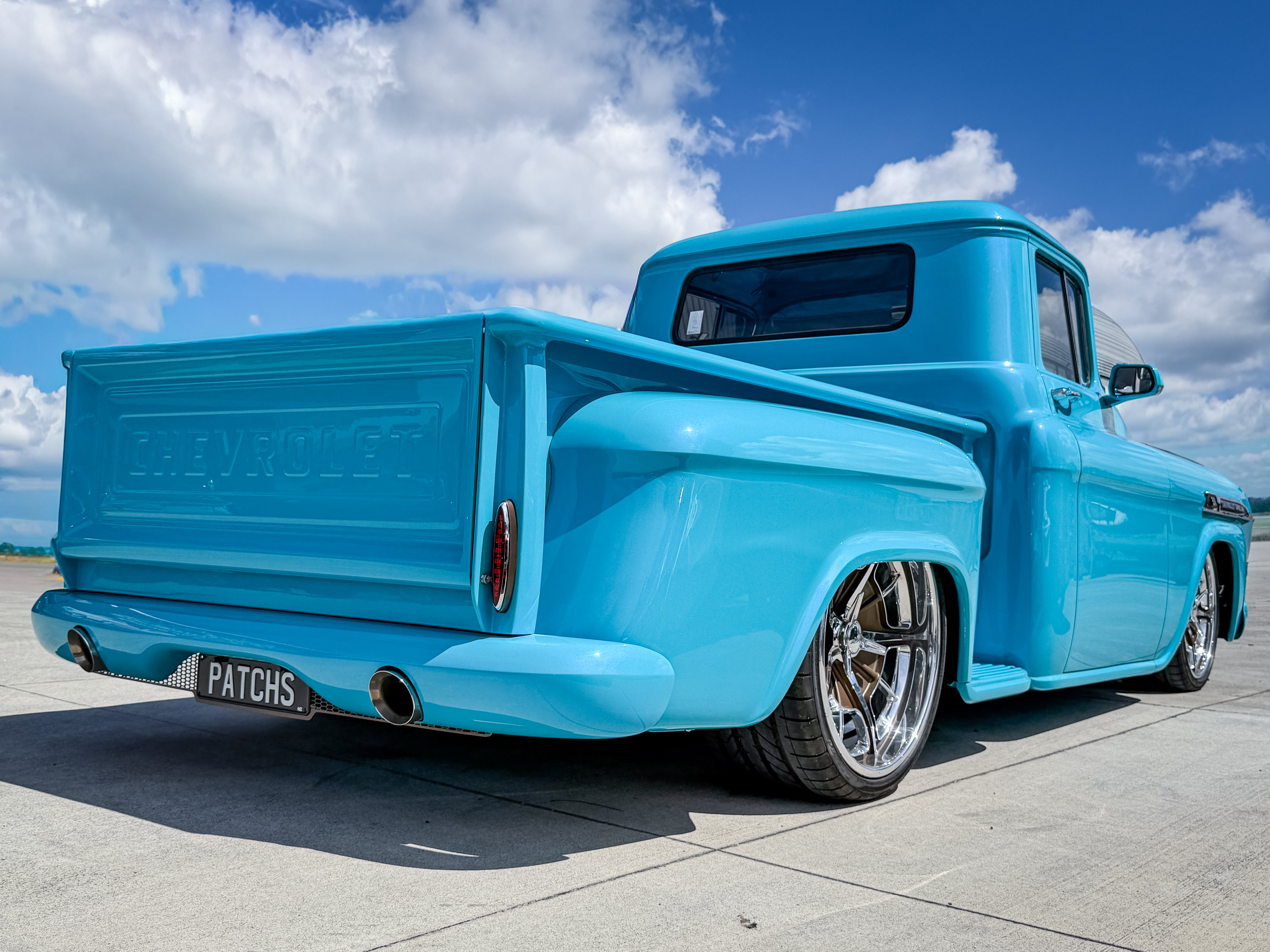

The custom three-stage PPG blue gives the Apache the presence Patch wanted while allowing the extensive bodywork to remain the focus.

The same finish is carried through details elsewhere on the truck, helping tie the chassis, engine bay and exterior together.

It's a completely different vehicle from the working pickup that arrived from California.

The Apache was completed in time for Repco Beach Hop, where it made its competition debut and finished in the event's Top Five.

But the more important achievement is what sits underneath the awards.

Patch set out to create a truck with modern performance and drivability without losing the character of the Apache.

That meant solving the difficult stuff properly — the chassis, suspension, power, cooling, braking, packaging, bodywork and certification — rather than simply adding expensive parts.

Two and a half years later, the result is a truck that delivers the visual impact of a fully custom build with the engineering and drivability to make it something Patch can actually enjoy on the road.

And perhaps that's the best measure of the project.

The original Apache was built to be a working truck.

More than six decades later, this one has been given an entirely new reason to work hard.
